Laser Line Up Tool

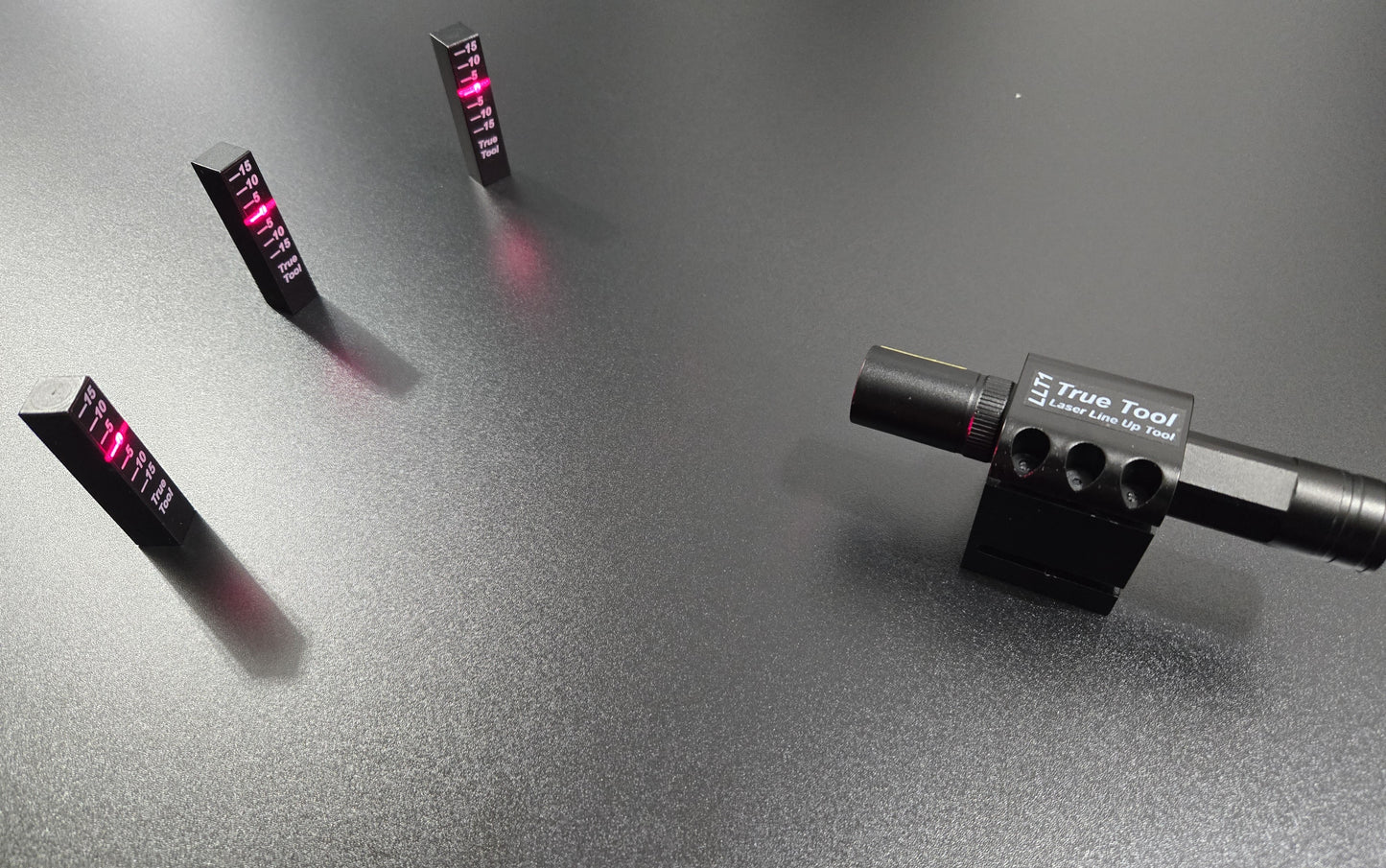

The LLT1 makes aligning pulleys, sprockets, light curtains, and other similar components fast and easy. Any application which requires two planes or surfaces to be aligned. This tool can be set up in less than 15 seconds by a new user.

Checking for proper alignment on belt and chain drives increases drive efficiency, power transmission, and component life. Proper alignment also reduces heat, noise, and downtime. This tool is the perfect solution for HVAC, commercial, aggregate, conveying,  automation, and other industrial applications. Correctly aligned drives reduce maintenance costs.

Simple alignment procedure: Mount laser onto the smaller pulley, pointed towards the larger pulley. Place the targets on the larger pulley or sprocket. To increase accuracy, maximize the distance between the targets. Ensure one pulley or sprocket is locked in place. Turn the laser on and work to adjust the plane of the other until all targets are indicating 0. For best results, tension the drive at the same time.

This tool checks all forms of misalignment. Many other laser alignment tools only check 1 or 2. LLT1 also has no mirrors which can reflect laser beams unpredictably. LLT1 uses magnets to mount and therefore requires a steel or iron surface. It can mount and function in any orientation while allowing the user to see adjustments in real time.

This tool comes in a water resistant storage case and includes a charger for a 16340 battery. You must obtain a CR123A or 16340 battery separately.

Replaces Bestorq LAT1, Gates EZ Align, Fluke 835, SKF TKBA, Easy-Laser D92 & XT90, B.A.T., Laser Tools Co GL80 & 85 LX, Johnson 40-6210, VibrAlign Belt Hog, Seiffert KX-3550, PowerLine L80 etc.

The LLT1 is your belt alignment tool and belt alignment laser.

General Specifications:

Accuracy ±0.5°, Working Angle: 60°, Max Laser Power 5 mW, Laser Wavelength 650 nm, Class IIIa, Working Voltage 3-5 V, Operating Altitude: <6500 ft, Relative Humidity: <80%, Operating Temp: 20°F to 120°F, Storage Temp: 0°F to 130°F

Also available on Amazon and eBay.
